Palnii plane
← Inapoi la categorieSolicita oferta
Palnii plane – PRODUCATOR: SIMAX – CEHIA
Descriere produs

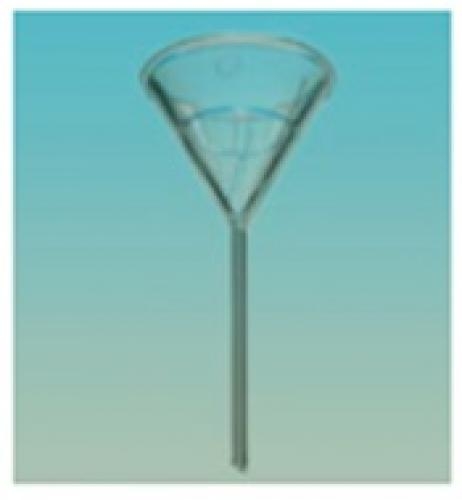

Palnie plana, unghi 600, cu tija scurta
Ghid de comanda:
| Cod 2350 | D1, mm | D2, mm | L, mm | Ambalaj, buc. |
| 2350/35 | 35 | 6 | 35 | 10 |
| 2350/45 | 45 | 6 | 45 | 10 |
| 2350/55 | 55 | 8 | 55 | 10 |
| 2350/75 | 75 | 8 | 75 | 10 |
| 2350/85 | 85 | 9 | 85 | 10 |
| 2350/100 | 100 | 10 | 100 | 10 |
| 2350/125 | 125 | 16 | 125 | 10 |
| 2350/150 | 150 | 16 | 150 | 10 |
| 2350/200 | 200 | 24 | 150 | 6 |
| 2350/250 | 250 | 30 | 175 | 2 |
| 2350/300 | 300 | 34 | 175 | 2 |

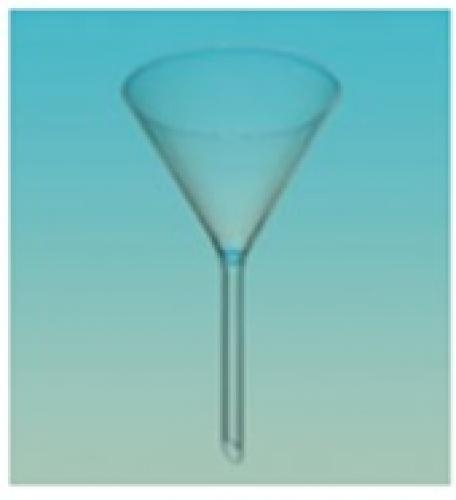

Palnii analitice pentru filtrare rapida
Ghid de comanda:
| Cod 2354 | D1, mm | D2, mm | L, mm | Ambalaj, buc. |
| 2354/55 | 55 | 8 | 150 | 10 |
| 2354/75 | 75 | 8 | 150 | 10 |
| 2354/100 | 100 | 8 | 150 | 10 |

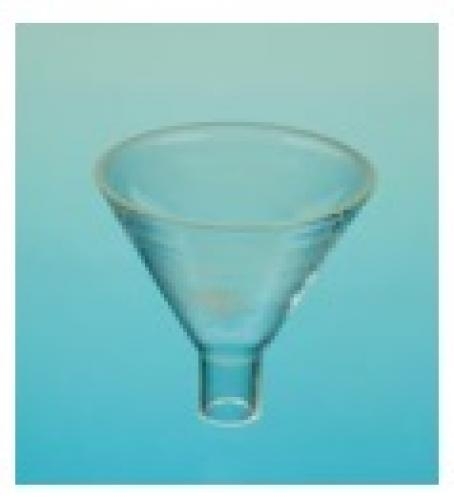

Palnii de umplere, cu tija scurta si gat larg
Ghid de comanda:
| Cod 2356 | D1, mm | D2, mm | H, mm | Ambalaj, buc. |
| 2356/60 | 50 | 20 | 50 | 10 |
| 2356/60 | 60 | 20 | 60 | 10 |
| 2356/80 | 80 | 25 | 75 | 10 |
| 2356/100 | 100 | 25 | 95 | 10 |
| 2356/120 | 120 | 30 | 110 | 10 |
| 2356/160 | 160 | 35 | 137 | 10 |
| 2356/200 | 200 | 38 | 180 | 6 |

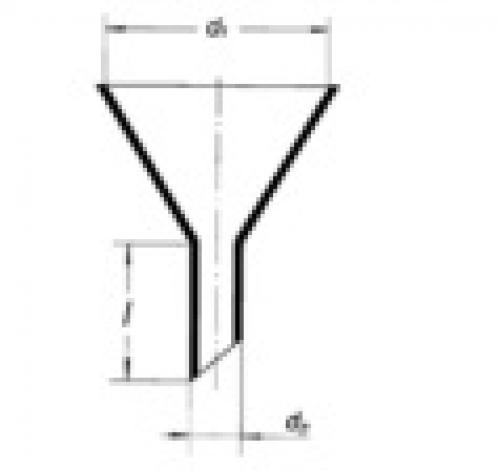

Palnie cu tija scurta si capat oblic
Ghid de comanda:
| Cod 2356/S | D1, mm | D2, mm | L, mm | Ambalaj, buc. |
| 2356/S/60 | 60 | 10 | 30 | 10 |
| 2356/S/80 | 80 | 12 | 32 | 10 |
| 2356/S/100 | 100 | 15 | 35 | 10 |
| 2356/S/150 | 150 | 32 | 52 | 10 |
